Beginners Level Course

Download Data Directory Click Here                        Download CasaXPS 2.3.26rev1.2 used in latest videos  Click Here

CasaXPS 2.3.25 Features (PDF which includes table of Component-Constraints Keywords)

Components Property Page 2.3.25 (PDF detailing features aimed at constructing peak models)

Quantification of Narrow Scan Spectra (PDF discussing features used to quantify spectra including energy calibration)

Peak Models and Fitting Statistics (PDF review of peak models, bell-shaped curves and background curves)

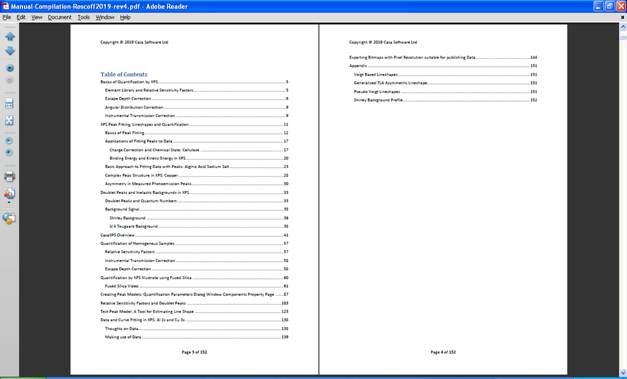

Download Book Cover PDF   (Paper size A4 80 gsm 152 pages)       Download Book Text PDF

Overview of CasaXPS

PDF Guide to Video

Click Here to Start Video

Quantification by XPS Explained by Example (Fused Silica)

PDF Guide to Video          Click to Download Fused Silica VAMAS file (zip file)

Click Here to Start Video

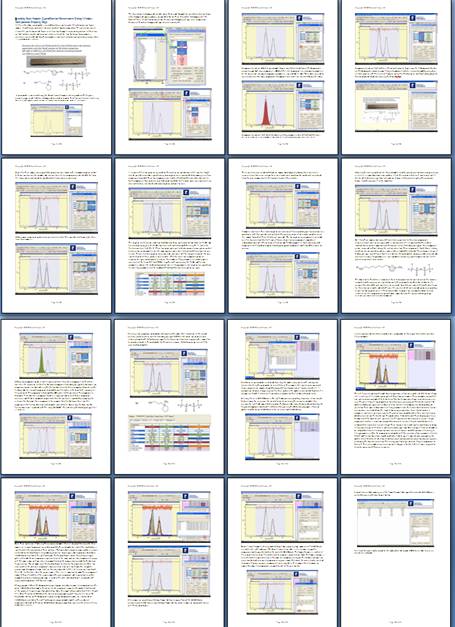

Constructing a Peak Model: N 1s Narrow Scan Data Fitting using Four Component Peaks

PDF Guide to Video

Click Here to Start Video

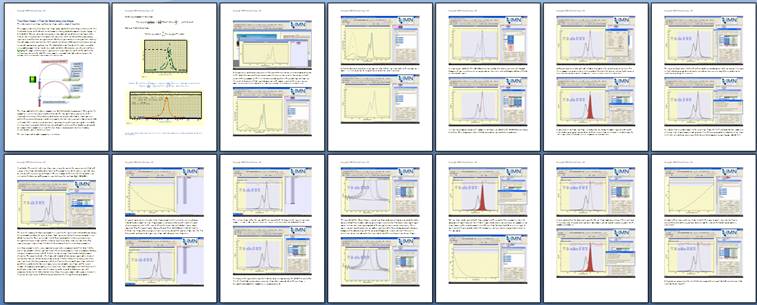

Constructing Line Shape

PDF Guide to Video

Click Here to Start Video

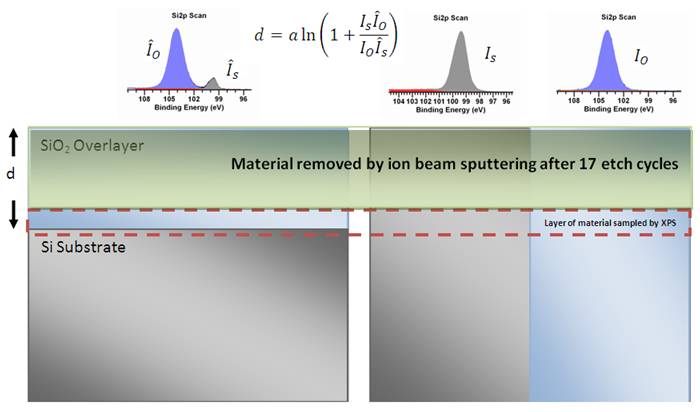

Processing a Sputter Depth Profile: Thick layer of SiO2 on Si and an example of estimating thin film depth

Click Here to Start Video

Printing and Exporting Data as TAB SPACED ASCII files





Getting Started with CasaXPS 2.3.18

Installing and Licensing CasaXPS 2.3.18 Click Here or mp4 Mode Click Here


Setting Fonts and Colours for 2.3.18 Click Here or mp4 Mode Click Here


Introduction to XPS

Relative Sensitivity of XPS Peaks Click Here or mp4 Mode Click Here

Survey Data and Photoemission Peaks Click Here or mp4 Mode Click Here

Introduction to Quantification by Regions Click Here or mp4 Mode Click Here

Creating a Quantification from a Survey Spectrum Click Here or mp4 Mode Click Here

Creating and Exporting Quantification for a Survey Spectrum Click Here or mp4 Mode Click Here

Converting Data to VAMAS Format

Creating kal Files for Kratos Data Click Here or mp4 Mode Click Here


Kratos Data Click Here or mp4 Mode Click Here

Thermo Data Click Here or mp4 Mode Click Here

X-Y Data Click Here or mp4 Mode Click Here

ULVAC PHI data Click Here or mp4 Mode Click Here

FTIR Spectra ASCII format Click Here or mp4 Mode Click Here

Graphical User Interface Videos Click Here

Chemical State Analysis using Peak Models

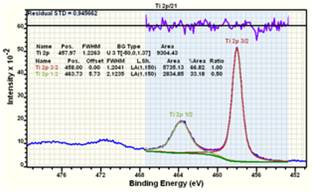

Simple Metal and Oxide Peak Model Click Here or mp4 Mode Click Here

Annotation of Spectra

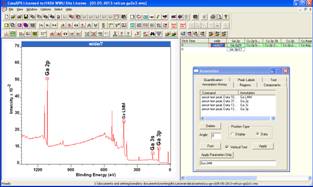

Creating Peak Label Annotation

A survey spectrum is annotated with peak labels. The element library and the Peak Labels property page of the Annotation dialog window are used to label the Ga 2p, Ga 3s, Ga 3p and Ga LMM Auger lines. Click Here or mp4 Mode Click Here

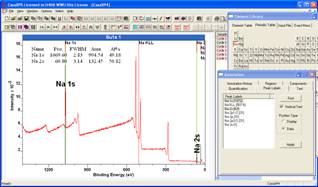

Creating Regions on Survey Data using Annotation Labels

Peak Label Annotation is used to create quantification regions on survey spectra. Regions are created for two photoemission peaks from sodium and are used to investigate differences between a set of measurements from related samples. Data are initially converted from ULVAC PHI Multipak spe binary files to VAMAS format, following which escape depth corrected Scofield cross-sections are used to compare intensities calculated from Na 1s and Na 2s peaks. Appropriate RSFs are selected from the element library through the Create from Labels button on the Regions Property Page. Click Here or mp4 Mode Click Here


Display Options

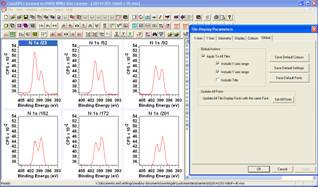

Page of Display Tiles and the Global Property Page on the Tile Display Parameters Dialog Window

A set of display tiles is defined and used to display N 1s all using the same intensity range rather than allowing each individual display tile to have independent scales determined directly from the data displayed therein. The Global property page of the Tile Display Parameter dialog window is used to transfer a specific intensity interval to the other five display tiles.

Click Here or mp4 Mode Click Here

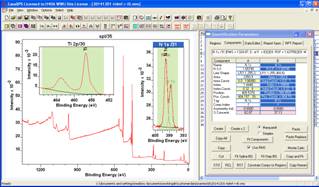

Display Tile and using the Options Menu to Insert Tiles within Tiles

Two display tiles showing high resolution spectra are added to a display tile used to plot survey data. The video illustrate how the Options menu on the CasaXPS main window makes available tools for managing the display in terms of tiles within tiles. Each such display tile is fully functional and provide more than simply displaying data, but also permit processing and the preparation of quantification items including full peak models for spectroscopic data.

Click Here or mp4 Mode Click Here
